Engineering a High-Performance 6-Layer Rigid-Flex PCB for Mechanical Control Panels
Rigid-flex PCBs represent a pinnacle of electronic integration, offering the stability of traditional rigid boards with the dynamic flexibility of circuits. This technical overview details the specifications and manufacturing considerations for a specialized 6-layer panel button rigid-flex PCB (R-FPCB) designed for demanding mechanical equipment applications.
Advanced Layer Stack-up and Material Selection
The core of this PCB's reliability lies in its sophisticated construction. It utilizes a hybrid material set, combining a robust FR-4 substrate (4 layers) with high-temperature Polyimide (PI) for the flexible sections (2 layers). This 6-layer panel button rigid-flex PCB is engineered to withstand both mechanical stress and thermal fluctuations common in industrial environments. The FR-4 layers provide a solid foundation for mounting components, while the Polyimide flex layers enable seamless interconnection between rigid sections or to other parts of the assembly, eliminating the need for failure-prone connectors and cables.
Precision Manufacturing and Critical Specifications
"Manufacturing such a board requires precise process control to meet the following key specifications:
1、Ultra-Thin Profile: The finished board boasts a minimal thickness of 0.15mm for the flexible areas, crucial for tight bending radii and compact designs. The rigid sections are correspondingly thicker, providing structural integrity.
2、Controlled Impedance and Current Carrying Capacity: A standard 1 oz (ounce) per square foot) copper weight ensures sufficient current capacity and allows for controlled impedance traces, which is vital for signal integrity.
3、Fine-Line Fabrication: The board supports a minimum trace width and spacing of 6/6 mil, demonstrating capabilities for handling moderately complex circuitry within the flexible zones.
4、Reliable Interconnect Vias: Mechanical drilling allows for a minimum hole size of 0.2mm, ensuring reliable through-hole connections between the layers of the rigid sections."
Surface Finish and Application-Specific Design
The chosen surface finish is Immersion Gold (ENIG - Electroless Nickel Immersion Gold). This finish provides a flat, solderable surface ideal for fine-pitch components, offers excellent oxidation resistance for long shelf life, and ensures reliable contact for panel buttons. The solder mask is available in either standard Green or White, with white often preferred for backlit buttons to enhance contrast and luminosity.
This 6-layer rigid-flex PCB is specifically designed for mechanical equipment PCBs, where durability, space savings, and reliability are paramount. Typical applications include industrial control panels, automotive subsystems, medical devices, and any application involving repeated motion or a compact form factor.
This 6-layer panel button rigid-flex PCB exemplifies modern circuit design, merging ruggedness with flexibility. Its specification set—defined by its FR-4/PI construction, 0.15mm thickness, and 6/6 mil trace/space—makes it a robust and reliable solution for advanced electronic assemblies in mechanical systems. Engineers seeking to improve the reliability and reduce the size of their equipment should consider this integrated rigid-flex approach.

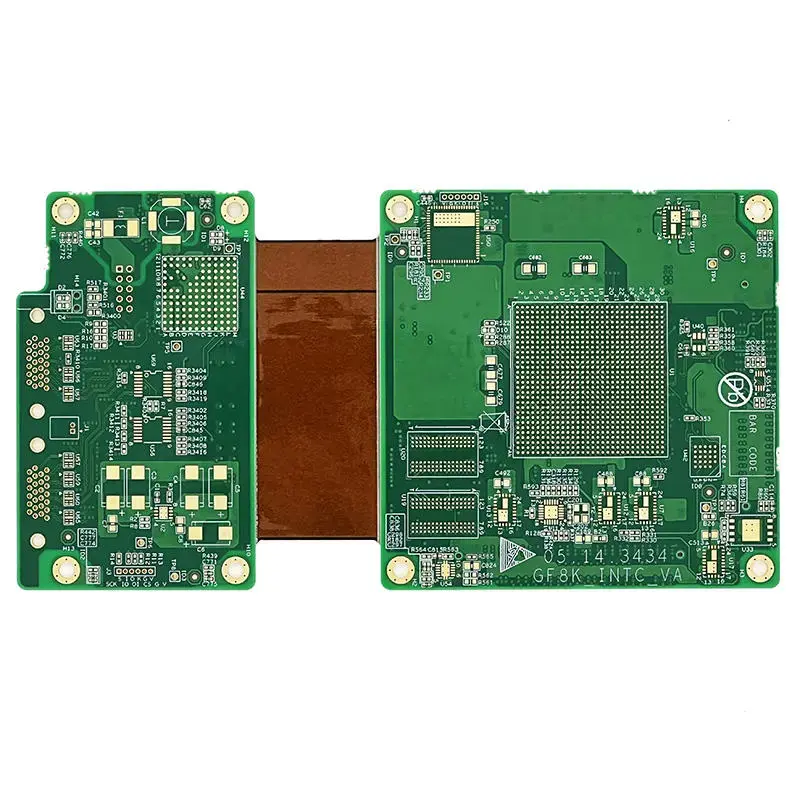

Product Type: 6-Layer Panel Button Rigid-Flex PCB (R-FPCB)
Base Material Composition: FR-4 and Polyimide (PI)
Layer Build-Up Configuration: 4-layer FR-4 rigid substrate coupled with a 2-layer Polyimide flexible circuit.
Physical & Electrical Properties Overall Finished Thickness: 0.15 mm
Copper Weight (Finished): 1 oz/ft²
Minimum Trace Width / Spacing: 6 mil / 6 mil
Minimum Drilled Hole Diameter (Mechanical): 0.2 mm
Finishes & Appearance Surface Finish (Plating): Immersion Gold (ENIG)
Solder Mask Color Options: Green or White
Primary Target Application Intended Use: Printed circuit boards for mechanical equipment, where a combination of structural rigidity and dynamic flexing is required.
