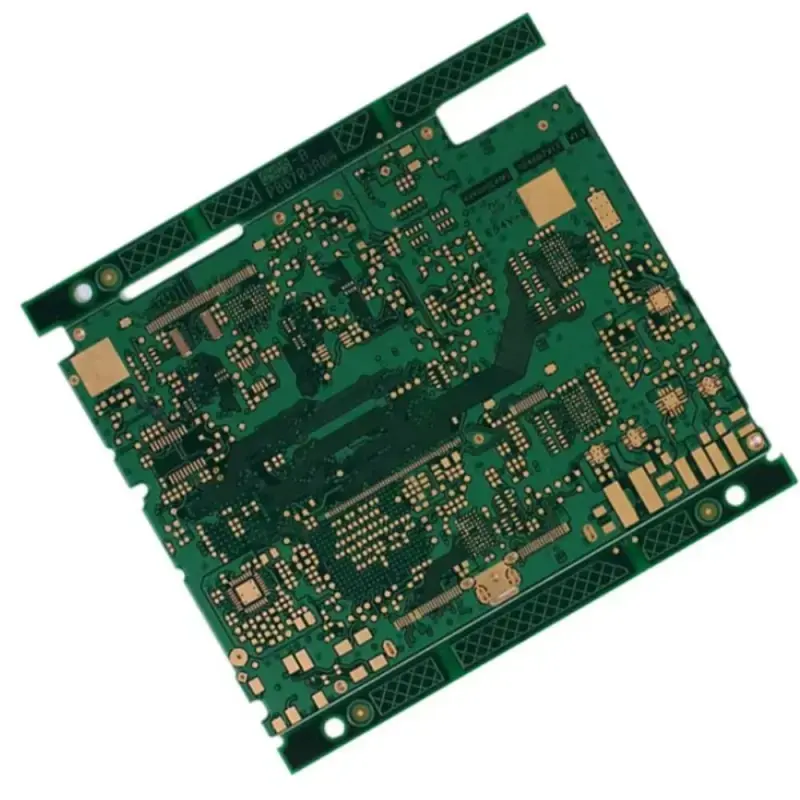

The demand for sophisticated and responsive smart androids necessitates advanced, reliable printed circuit boards (PCBs) at their core. This technical data sheet outlines the specifications for a high-performance motherboard PCB engineered specifically for smart robot applications. This 6-layer board is designed to meet the rigorous demands of complex processing, sensor integration, and real-time control, ensuring optimal functionality in advanced robotic systems.
Key Technical Specifications
1、Product Designation: Smart Android Robot Motherboard PCB
2、PCB Construction: 6-Layer Multilayer Board
3、Base Material: High-Grade SY S1141 Laminate
4、Board Thickness: 1.0mm (Finished Thickness)
5、Solder Mask Colors: Standard Blue and White
Copper Weights:
 Inner Layers: 1 oz (35 µm)
 Outer Layers: 0.5 oz (17.5 µm)
7、Surface Finish: Immersion Gold (ENIG - Electroless Nickel Immersion Gold)
8、Minimum Trace/Space: 3 mil / 3 mil (0.075 mm / 0.075 mm)
9、Primary Application: Smart Android Robot Motherboard
In-Depth Technical Analysis
1. 6-Layer PCB Architecture
The choice of a 6-layer stack-up is critical for a smart robot motherboard. This configuration provides dedicated layers for power, ground, and signal routing, which significantly reduces electromagnetic interference (EMI) and crosstalk. It allows for a denser component placement and more complex circuitry required by modern processors and communication modules, surpassing the limitations of simpler 2 or 4-layer boards.
2. Material: SY S1141 Laminate
The use of SY S1141 material indicates a focus on reliability and performance. This type of laminate typically offers excellent thermal stability, good dielectric properties, and mechanical strength, which are essential for ensuring the long-term durability of the robot motherboard under varying operational conditions.
3. Controlled Impedance and Copper Weights
The asymmetric copper weights (1OZ inner, 0.5OZ outer) are a sophisticated design choice. The thicker inner layer copper (1OZ) is optimal for power plane integrity, allowing for better current carrying capacity and heat dissipation. The thinner outer layer copper (0.5OZ) is advantageous for fine-line etching, enabling the high-density interconnects necessary for the 3/3 mil trace/space specification. This combination supports controlled impedance signaling for high-speed data transmission.
4. Surface Finish: Immersion Gold (ENIG)
Immersion Gold is the preferred surface finish for complex motherboards. The flat, hard gold surface provides excellent solderability, ensures a reliable contact surface for gold-plated connectors, and offers superior oxidation resistance compared to other finishes like HASL. The flat surface is particularly important for successfully assembling fine-pitch Ball Grid Array (BGA) components commonly found on robot mainboards.
5. Precision Manufacturing: 3/3 mil Trace/Space
The ability to consistently produce traces and spaces as fine as 3 mil (0.075mm) demonstrates a high level of manufacturing precision. This capability is mandatory for routing signals from modern microprocessors and memory chips, allowing for a greater number of connections in a compact area, which is a hallmark of an advanced Smart Android Robot Motherboard PCB.
This Smart Android Robot Motherboard PCB is a high-specification multilayer board designed to meet the challenging requirements of next-generation robotics. With its 6-layer ENIG-finished construction, precise 3/3 mil trace/space capability, and robust material selection, it provides a reliable and high-performance foundation for complex robotic control systems. Manufacturers and engineers can rely on these specifications for applications demanding high density, signal integrity, and long-term reliability.
