Engineering a High-Reliability Rigid-Flex PCB for Next-Generation Smart Health Assistants
The evolution of wearable medical technology demands printed circuit boards (PCBs) that are as advanced as the devices they power. Smart health assistants, in particular, require a unique combination of robustness, miniaturization, and flexibility. This technical brief details the manufacturing specifications and engineering considerations for a purpose-built Rigid-Flex PCB (FPCB) designed to meet these challenges.


Core Design and Material Selection

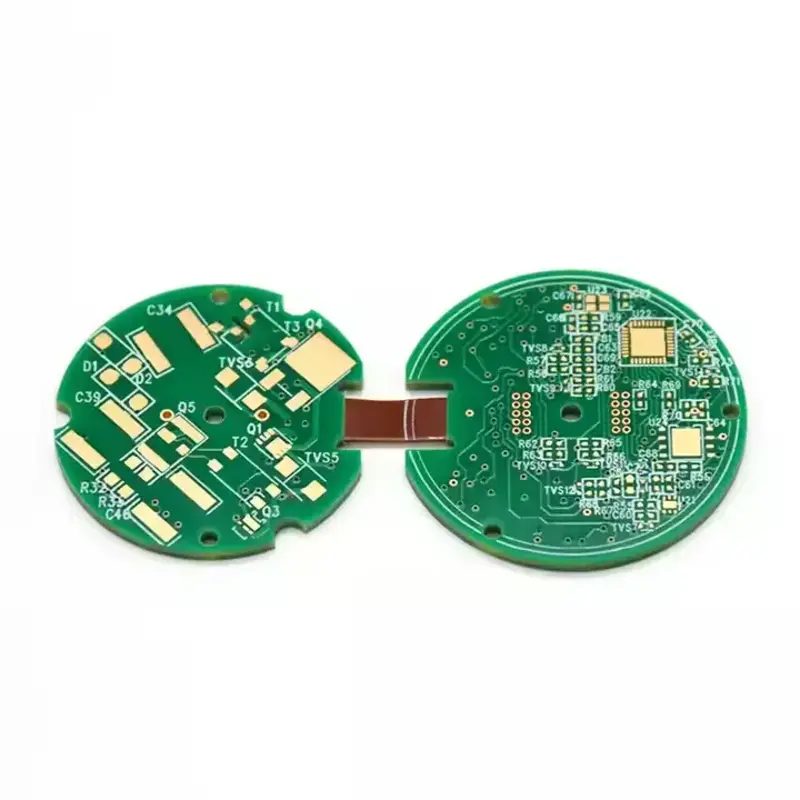

"The foundation of this PCB is a 6-layer rigid-flex construction. This architecture strategically combines rigid FR-4 substrates for component support and complex routing with flexible polyimide (PI) sections for dynamic folding or connecting to different device modules.
1、Base Materials: The rigid sections utilize high-performance FR-4 laminate, prized for its mechanical strength and dielectric properties. The flexible segments are built on Polyimide (PI) film, chosen for its exceptional thermal stability, flexibility, and resistance to cracking. The bonding of these dissimilar materials is a critical step, requiring precise control to ensure reliability under flexing conditions.
2、Layer Stack-up: The six-layer count provides sufficient real estate for power, ground, and signal planes, enabling sophisticated functionality while minimizing electromagnetic interference (EMI)—a crucial factor in sensitive health monitoring equipment."


Critical Manufacturing Specifications and Tolerances
"Precision manufacturing is paramount. The following specifications highlight the capabilities required for producing this board:
1、Differential Thickness Management: A key feature is the management of different thicknesses. The rigid board sections are manufactured to a thickness of 0.8mm, providing structural integrity. In contrast, the flexible circuits are precision-engineered to a slender 0.2mm, ensuring minimal bending stress and a compact form factor.
2、Copper and Circuitry: The board employs a standard 1 oz (0.025mm) copper thickness for optimal current carrying capacity. A notable manufacturing challenge overcome is achieving a minimum trace width and spacing of 0.1mm (100 microns), which allows for high circuit density and component miniaturization.
3、Surface Finish: The board features an Immersion Gold (ENIG) surface treatment over the copper pads. This finish is selected for its flatness, which is essential for reliable soldering of fine-pitch components, its excellent oxidation resistance for long shelf life, and its robustness for consistent electrical connectivity."


Application and Reliability in Smart Health Devices
This Rigid-Flex PCB is engineered specifically for the demanding environment of smart health assistants. Its design supports applications such as vital signs monitoring (heart rate, blood glucose), activity tracking, and data transmission. The rigid-flex design enhances product durability by eliminating the need for fragile board-to-board connectors, which are common points of failure. This results in a more reliable, compact, and lightweight device that can withstand the rigors of daily wear.


The detailed specifications of this Smart Health Assistant Rigid-Flex PCB—from its 6-layer FR-4/PI composite build to its precise 0.1mm trace geometry and ENIG finish—exemplify the advanced manufacturing techniques required for modern medical wearables. This integrated approach to design and fabrication ensures that the final product delivers the high performance, reliability, and miniaturization that the healthcare technology market demands.
