Advanced 2-Layer Aluminum PCB: Technical Manufacturing Guide for High-Performance LED Applications
Two-layer aluminum PCBs represent a significant advancement in thermal management solutions for high-power electronic applications. These specialized printed circuit boards combine the electrical performance of standard PCBs with the superior heat dissipation properties of aluminum substrates, making them ideal for demanding applications such as high-end LED desk lamps.
Technical Specifications and Manufacturing Standards
The 2-layer aluminum PCB features a robust construction with a finished thickness of 1.2mm, providing optimal mechanical stability while maintaining efficient thermal transfer characteristics. With 1oz copper thickness on both layers, these boards ensure reliable current carrying capacity and signal integrity. The lead-free HASL (Hot Air Solder Leveling) surface finish offers excellent solderability and environmental compliance.
A critical differentiator in the manufacturing process is the implementation of 4-layer PCB production standards for these 2-layer boards. This elevated manufacturing approach ensures tighter tolerances, improved layer-to-layer registration, and enhanced overall reliability compared to conventional 2-layer fabrication methods.
Thermal Performance Characteristics
The aluminum substrate delivers exceptional thermal conductivity rated at 2.0 W/m·K, effectively transferring heat away from sensitive components. This thermal management capability is crucial for maintaining optimal performance and extending the operational lifespan of high-power LED systems. Available in both white and black solder mask options, these PCBs accommodate various design requirements while providing consistent thermal performance.
Application-Specific Advantages for LED Lighting
In high-end LED desk lamp applications, the 2-layer aluminum PCB serves as both an electrical platform and thermal management solution. The aluminum core efficiently dissipates heat generated by high-luminance LEDs, preventing thermal degradation and maintaining consistent light output. This thermal stability translates to improved LED efficiency, color stability, and significantly extended product lifetime.
The manufacturing process emphasizes precision and reliability, with strict quality control measures ensuring that each board meets the demanding requirements of professional lighting applications. By adhering to enhanced production standards typically reserved for more complex multilayer boards, these 2-layer aluminum PCBs deliver exceptional performance consistency and long-term reliability.
This combination of advanced thermal management, rigorous manufacturing standards, and application-specific design makes 2-layer aluminum PCBs the preferred solution for high-performance LED lighting systems where thermal performance and long-term reliability are critical factors.

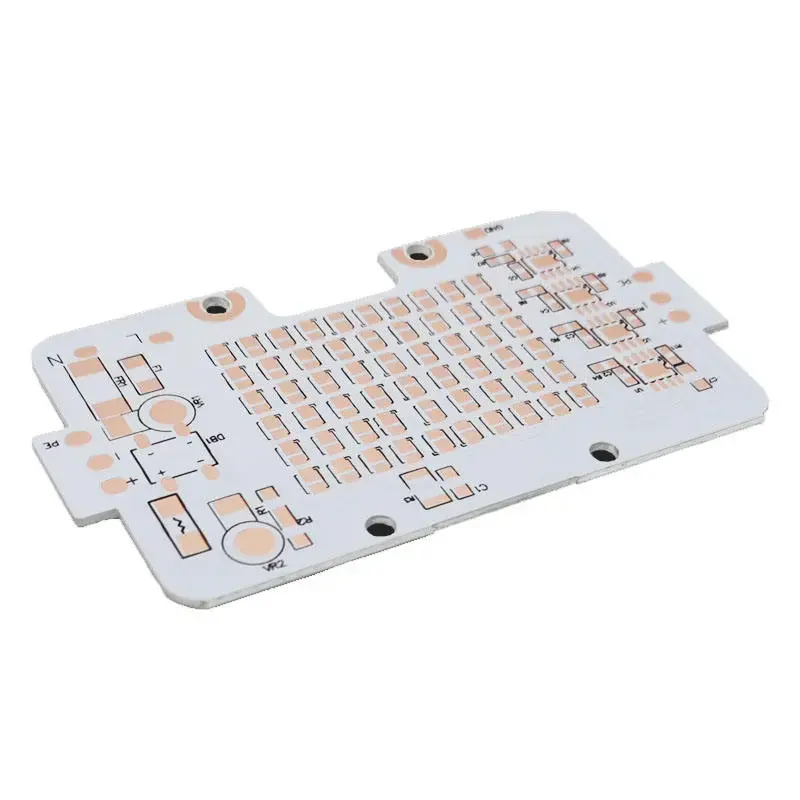

Model: Two-Layer Aluminum PCB
Construction: Aluminum substrate, 2-layer
Available Colors: White / Black
Board Thickness: 1.2 mm
Copper Weight: 1 oz
Surface Finish: Lead-free Hot Air Solder Leveling (HASL)
Thermal Conductivity: 2.0 W/m·K
Special Process: Manufacturing process follows 4-layer PCB standard
Application: High-end LED desk lamp applications
